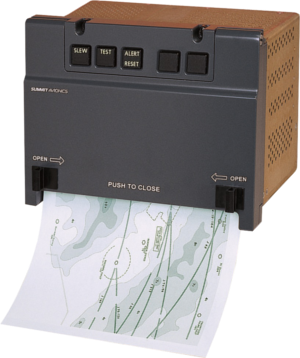

The MIPS-400 Wide Carriage Printer is the culmination of over two decades of experience in producing highly
ruggedized and reliable printing devices designed specifically for airborne applications.
Using proven thermal technology, this printer family exceeds the requirements of the ARINC 744A while also providing HP/PCL 5e compatibility, TCP/IP Network and WiFi support, making it a cost effective printing solution for systems incorporating COTS hardware and software. The modular design allows for a wide range of configurations as well as future expandability.
Using proven thermal technology, this printer family exceeds the requirements of the ARINC 744A while also providing HP/PCL 5e compatibility, TCP/IP Network and WiFi support, making it a cost effective printing solution for systems incorporating COTS hardware and software. The modular design allows for a wide range of configurations as well as future expandability.
KEY FEATURES
• Easy, one hand paper loading
• High speed printing using HP/PCL 5e graphic language
• Compatibility with MS Windows 95, 98, NT, 7 and 8
• IEEE-1284, Ethernet (TCP/IP), WiFi support

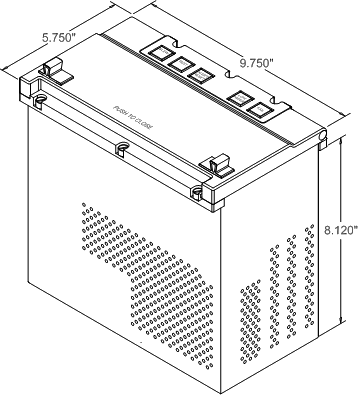

• Shallow depth for installation flexibility (8.12" below rail)
• Reduced weight
• Sealed and protected against liquid spills
• Support for Pre-Perforated paper (5 ½ - 22" panel size)
• Electronic Paper Quantity Gauge
• FORMS LIBRARY TM - Storage of charts and maps
• Spare slot for future expansion
• Easily serviced through modular design
• Designed to meet RTCA DO-160B
• High speed printing using HP/PCL 5e graphic language
• Compatibility with MS Windows 95, 98, NT, 7 and 8
• IEEE-1284, Ethernet (TCP/IP), WiFi support
• Shallow depth for installation flexibility (8.12" below rail)
• Reduced weight
• Sealed and protected against liquid spills
• Support for Pre-Perforated paper (5 ½ - 22" panel size)
• Electronic Paper Quantity Gauge
• FORMS LIBRARY TM - Storage of charts and maps
• Spare slot for future expansion
• Easily serviced through modular design
• Designed to meet RTCA DO-160B

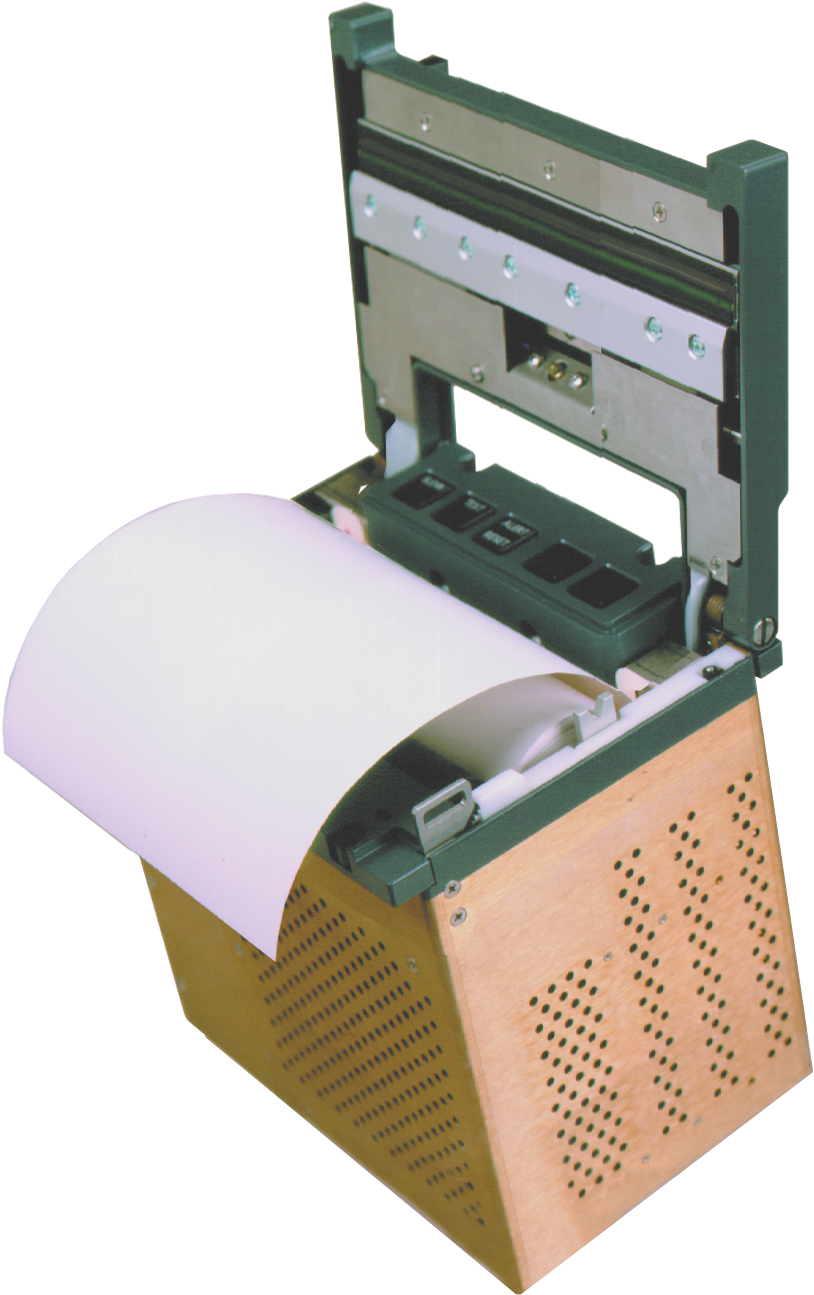

Easy paper loading is accomplished by inserting a
fresh roll into the paper compartment and closing the
access door. It's that simple! Our unique design
avoids the torturous paper path typically found on
many other printers, virtually eliminating the possibility
of a paper jam. Pre-perforated paper is available in
panel sizes ranging from 5 ½ to 22" thereby
eliminating the need for an onboard perforator. The
Electronic Top of Form (TOF) sensor accurately and
automatically aligns each printed page with the
installed form length.
OPERATIONAL FEATURES
KEY FEATURES
Interface
Power
Front Face Switches
Front Face Enunciators
Weight (with paper)
Print Resolution (max.)
Print Speed (max.)
Number of Fonts
Power
Front Face Switches
Front Face Enunciators
Weight (with paper)
Print Resolution (max.)
Print Speed (max.)
Number of Fonts
ARINC 429 (8 Channels)
Ethernet (802.3) (2 Channels)
IEEE 1284 (Parallel)
Wi-Fi (802.11a, b, g, n) WLAN
Power 115VAC, 47 – 440 Hz.
Idle Mode – 23 Watts
Print Mode – 100 Watts
Ethernet (802.3) (2 Channels)
IEEE 1284 (Parallel)
Wi-Fi (802.11a, b, g, n) WLAN
Power 115VAC, 47 – 440 Hz.
Idle Mode – 23 Watts
Print Mode – 100 Watts
Slew
Test
Alert Reset
Fail
Low Paper
11 lbs.
300dpi
4 pages per minute
45 type, scalable
Test
Alert Reset
Fail
Low Paper
11 lbs.
300dpi
4 pages per minute
45 type, scalable
